Sun Oct 11 2020

Fabricating sub panel ribs

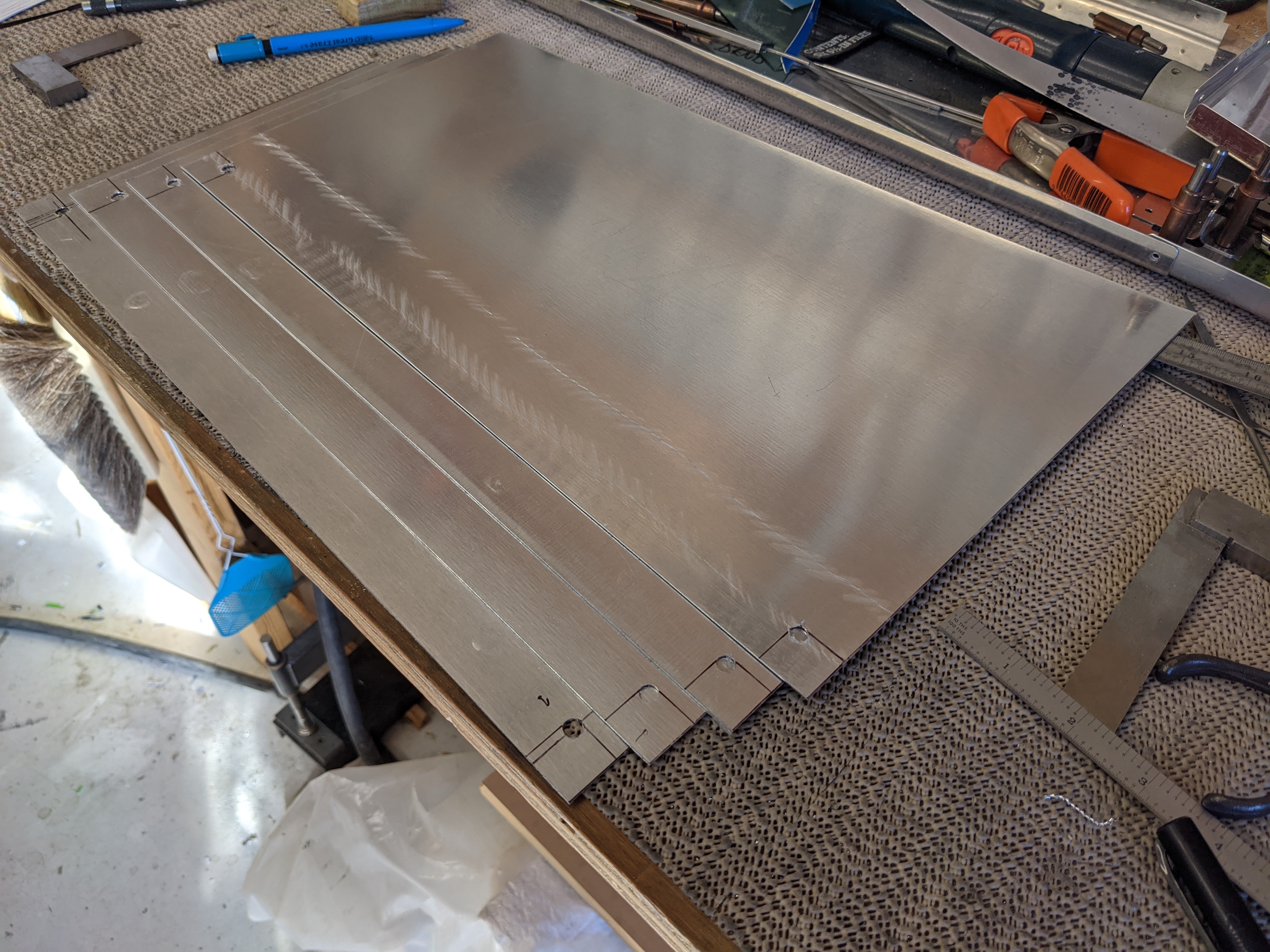

After marking the rib blank length (I went with the theoretical calculation of 1.687 instead of the empirical 1.677 value...we'll see if my flanges end up a bit to wide), I drilled 1/4" holes for bend relief at the intersection of two flanges.

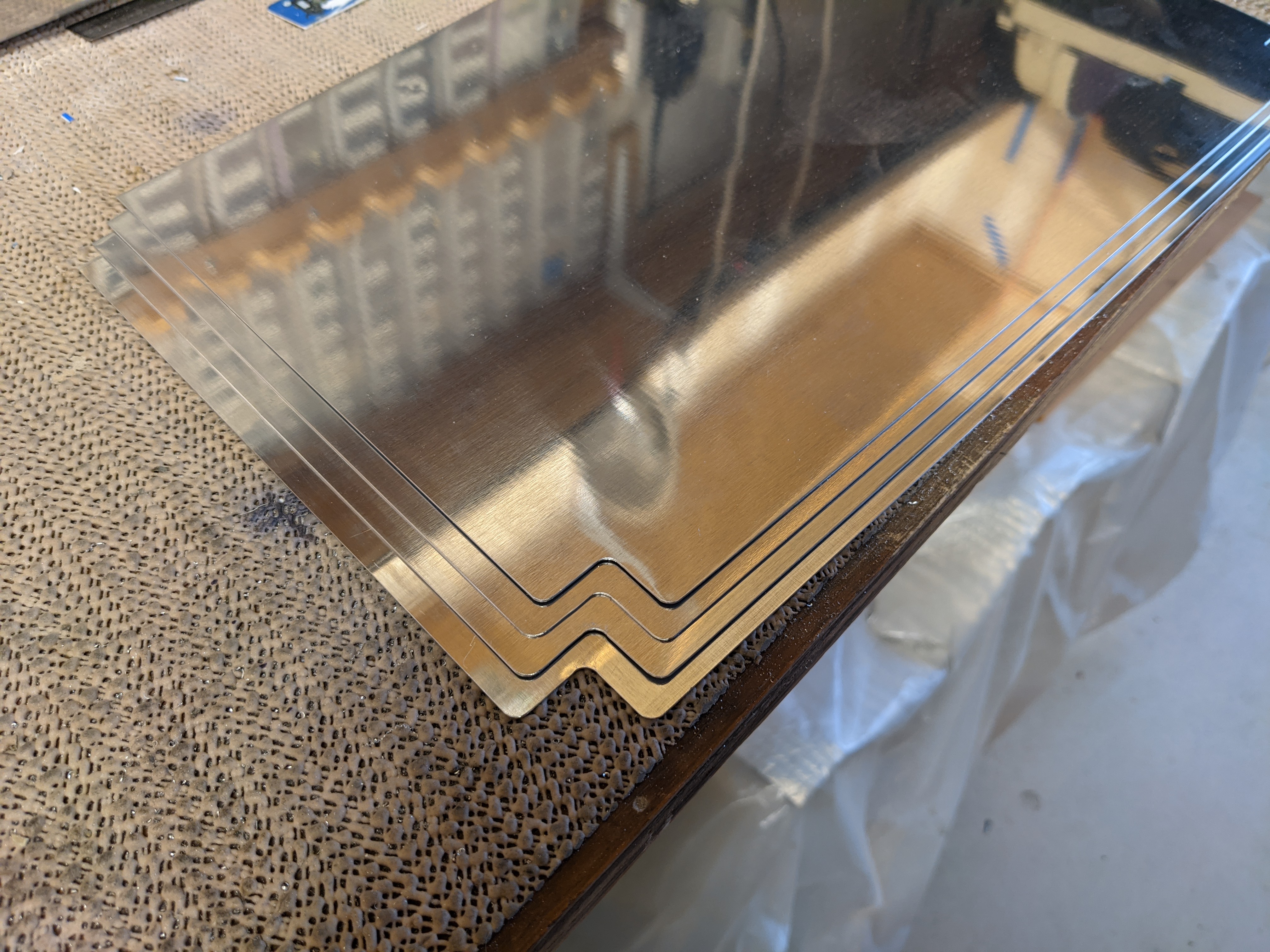

Then snipped and filed the corners out and edge deburred all but the diagonal edge. Actually I did those edges just a bit as well...to make the parts easier to handle. I'll have to re-cut that diagonal once I have the ribs fitted.
